Friday, April 16, 2010

a little more improvement

Exchanged opinions with German bear last night, he would like to have Ysarex 4.7/127mm lens a lens shade, but since the lens does not have filter threads, he asked me if I know any shade available for it.
I remember reading a post, a Chinese lives in Canada ever glued a step-up ring on lens, then he can use filters/shade in front of Ysarex.
I think this is not bad idea, a little more improvement makes Byron better, I can do this as basic conversion, so I went to find the ring this afternoon.
49-52 step-up ring is almost perfect fit for the lens, but the inner diameter of ring is 46.0mm, and the outer diameter of the lens is 46.5mm, that I need to visit my mechanist to do some work.

Lathe the inner diameter into 46.5, step-up ring is tightly fit on the lens. Inner circle is shinny silver due to the lathe work.
And then I squeezed to fit the ring, no any glue needed, it is just so tight, you will need to use a philip screwdriver to take it off.
It looks neat and pretty, with this ring we can install any 52mm filter on, and of course a 52mm lens shade. With ring on the lens, it safely stay in the camera body when fold.
To all my clients who are waiting for their Byron home, I am very sorry for delaying this conversion batch, for some caused by my finger injury, and some by my mechanist who was busy on other company's case. To make up the drag, I will install this step-up ring on Ysarex 4.7/127 to each Byron, unless you write to me, say "no!"

Another improvement is to unify distance scales.
Byron is a conversion turning a fixed lens camera into an interchangeable lens system, besides one prime lens is range coupled with range finder, other lenses planning to use must have their distance scale for un-coupled focus.

But Polaroid designed distance scale in a merely weired way, distance scale original on 110B is not engraved in between object and focal plane, which is a common way to do, instead, they measured distance between objects and lens. Two system differ on the length of camera body, that is about 8inches.

For object locates far away, say 20 feet, 8 inches makes no difference for both two scale, but if object is near, maybe 5feet away, then 8 inches means a big focus error.

I was reminded by Raymond, a Byron client, he wrote me one day said that the distance scale is not right, I followed what told and found out the same situation. Then I finally found that all lenses I measured and set are based on focal plane, but distance scale on 110B is based on lens tip, that caused errors.

And original distance scale misguided people, makes us thought that 127mm lens can focus as near as 3 feet, but to focal plane, actually 3.5 feet.

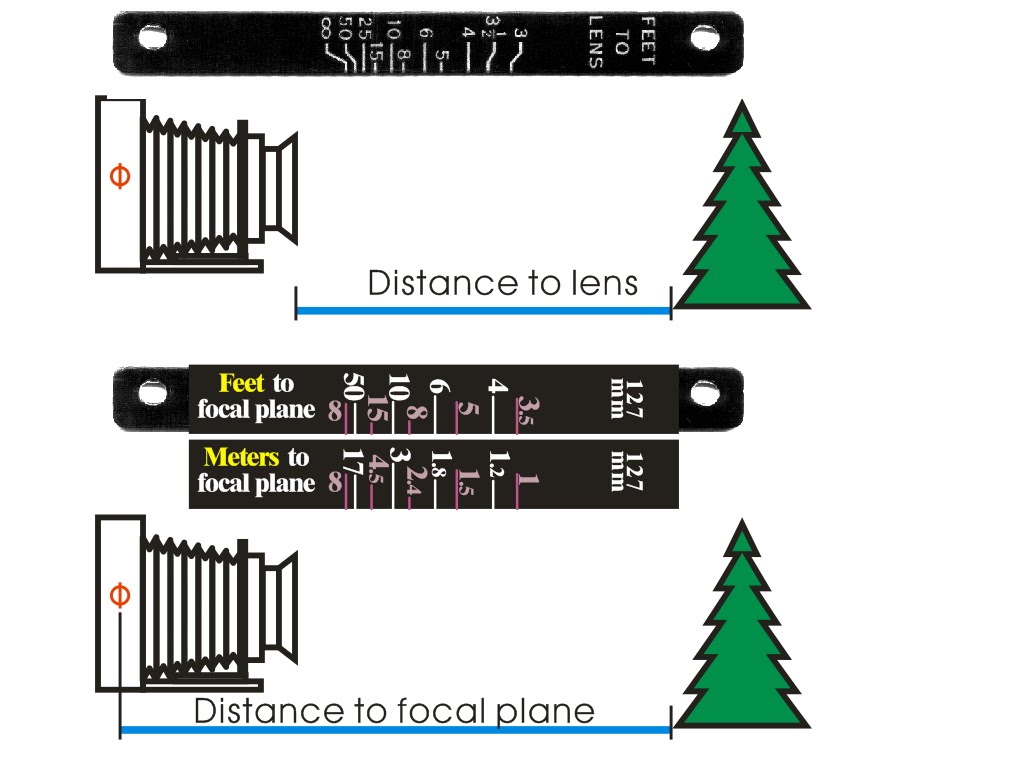

So I redesigned the scale, remeasured and remarked it, image on top is what original distance scale shows and what it measured, below is what new scale shows and it measured.
New scale has bigger numeric numbers, to help people like me, in the middle age, weak eye sighted. And in colors for more clearly display.
Not only scale in feet, also there is version in meters, reminded by a French client, some people get used to use metric system.
Again, please let me know if you prefer to use metric system, or I will use imperial system.

2 comments:

Anonymous said...

You can also use 52-to-something step-up rings. There is just the right space between the ring and the lens to fit a double sided cartape for easy weather proof attachment which should last for ages and yet still be easily removable if you ever want to do that.

Unknown said...

Yes I tested it yesterday, 52~55 step up is good to fit with plenty room for tape or glue, but 49~52 is so fit but missing so little, I thought if I press harder, maybe the ring will slide into the lens tip, but I think better ask my mechanist first.....
after the ring modified, the ring is "clicking" tightly fit, you wouldn't worry it falling with lens shade, or screw too tight that it goes with filter, or when you unfold the front door, the ring goes out on the street...
52~55 step is much easier, I recommend to each DIY pal, and if you have a mechanist friend, go to a 49~52 ring.
